The Lifter
The ultimate Lifter with a 240 pound capacity, smooth raise/lower functionality and hassle-free installation.

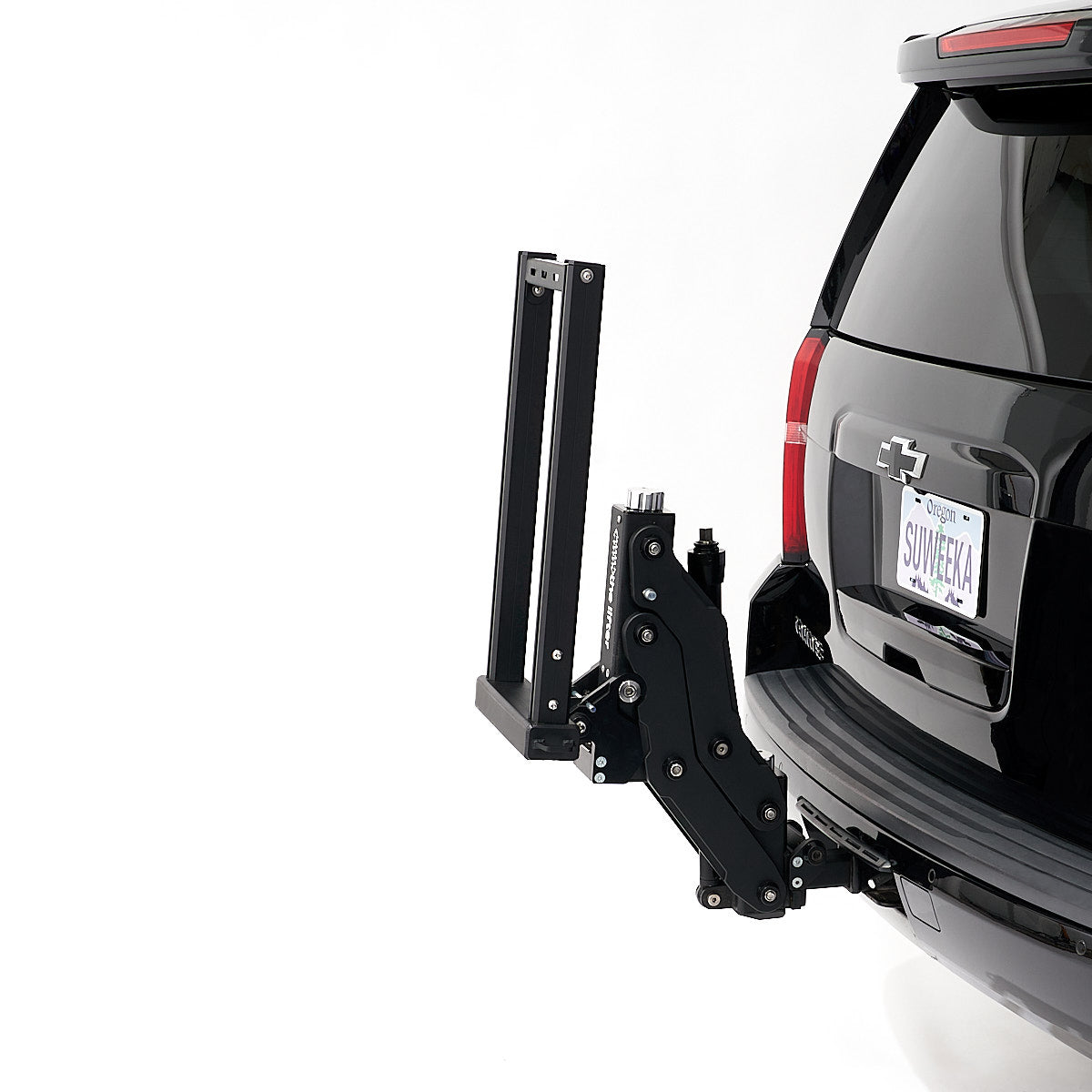

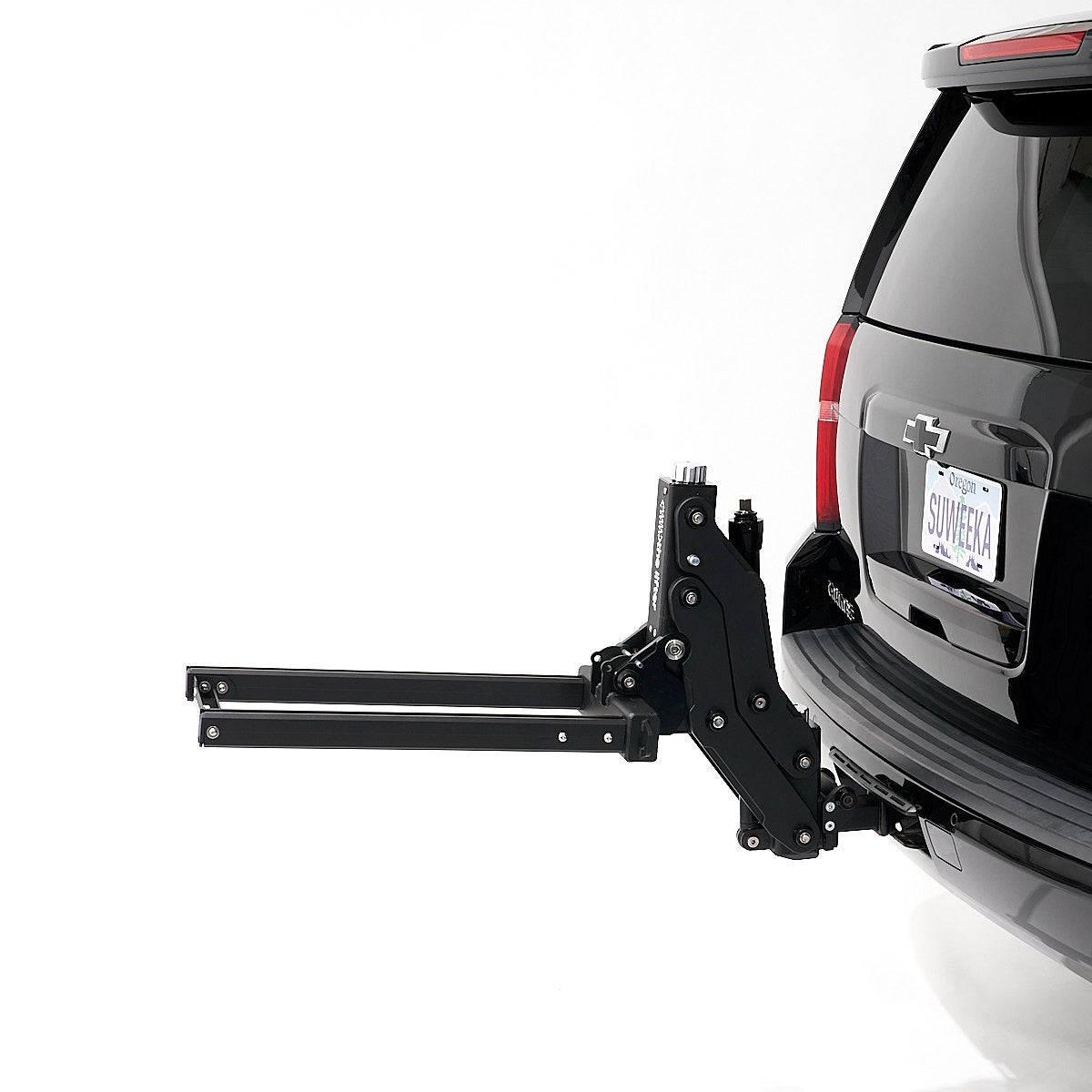

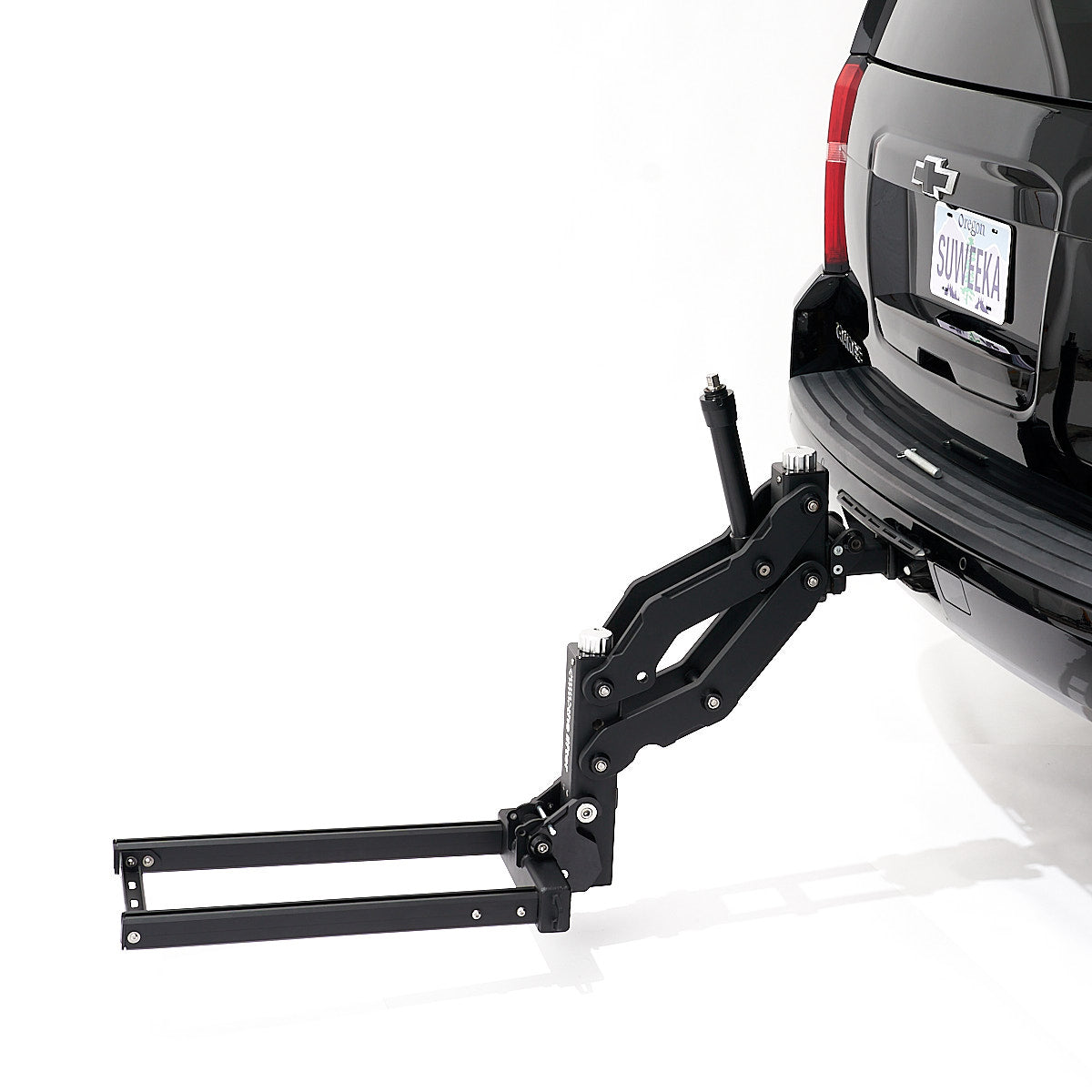

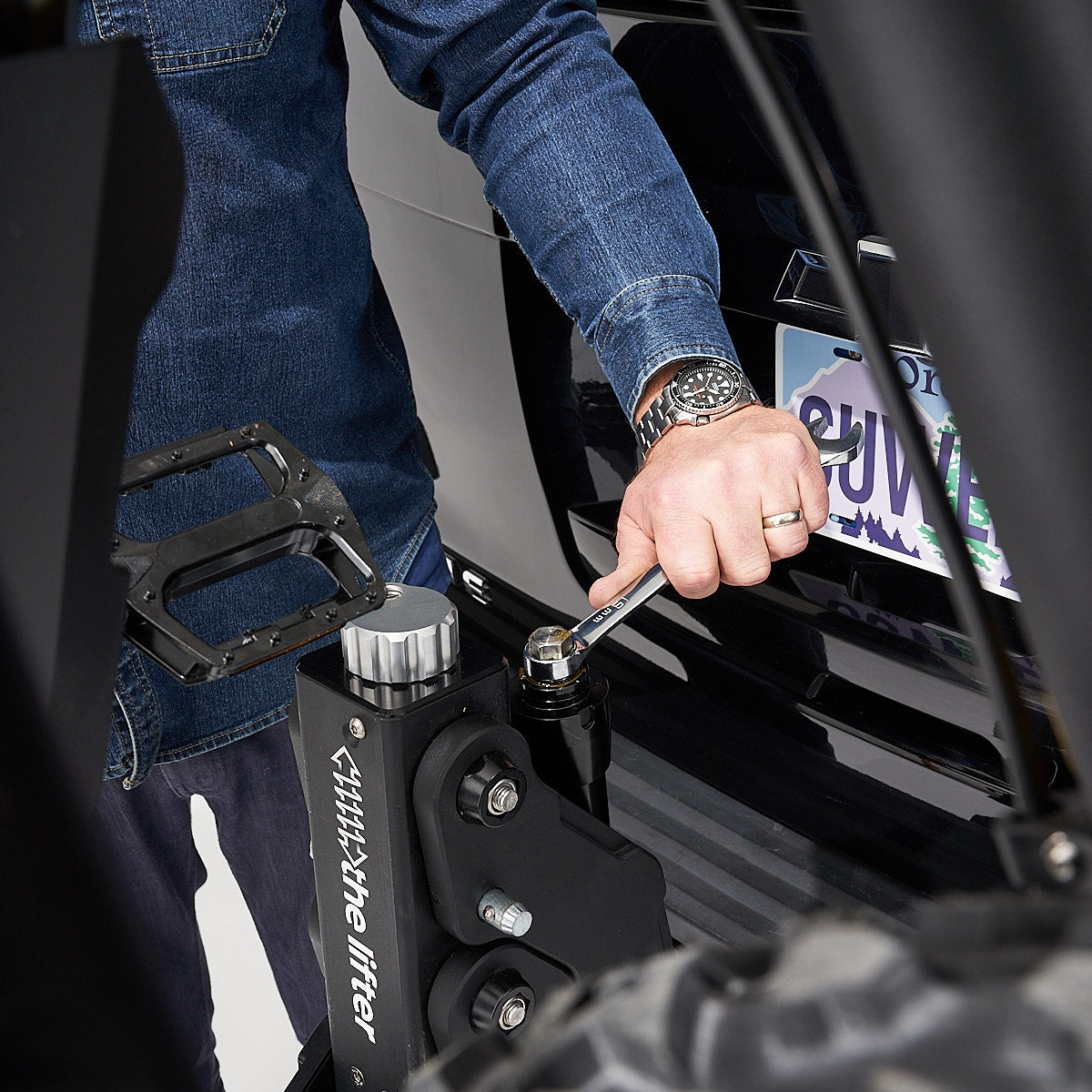

With the Suweeka Lifter you can place your cargo on the carriage while it sits at ground level and then using your user supplied power drill, wrench or ratchet and socket, raise the Lifter into transit mode.

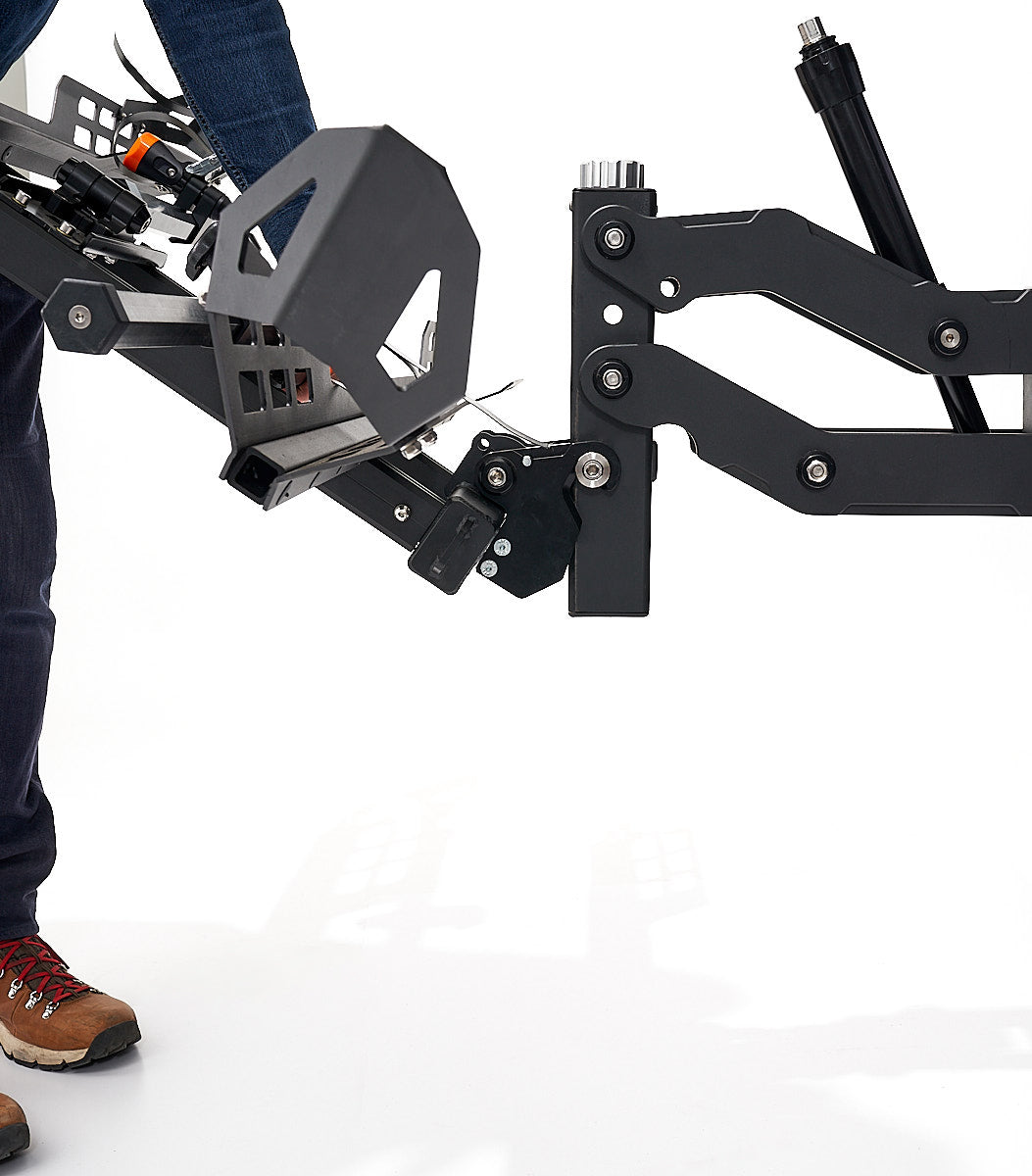

The Carriage has 24 inch arms, allowing the user to build custom solutions on our robust platform.
The Lifter is comprised of two components, that have a combined weight of 85 pounds. The Lifter weighs 43 pounds and the naked Carriage weighs 42 pounds.
When ordering your Suweeka lifter, we will need to know the length of quick connect hitch cleat you will need.
We need the length/distance, from the face of your vehicles 2 inch receiver to the trailing edge of your bumper, or spare tire if you are driving a vehicle with a rear door mounted spare tire.
Less than 0 inches or receiver sticks out past the bumper - order a 4 inch version.
0 - 2 Inches, order a 6 inch version
2 - 3 inches, order an 8 inch version
3 - 4 inches, order a 10 inch version
Over 4 inches, order a 12 inch version
Warranty & Returns
Return shipping costs are non-refundable and deducted from product refunds. Lifetime Warranty: Suweeka products are built to last a lifetime, with replacement parts available for consumables.
Shipping
We ship to the contiguous lower 48 states, and the District of Columbia via FedEx Ground. Customers in Hawaii and Alaska should contact us to arrange shipping.

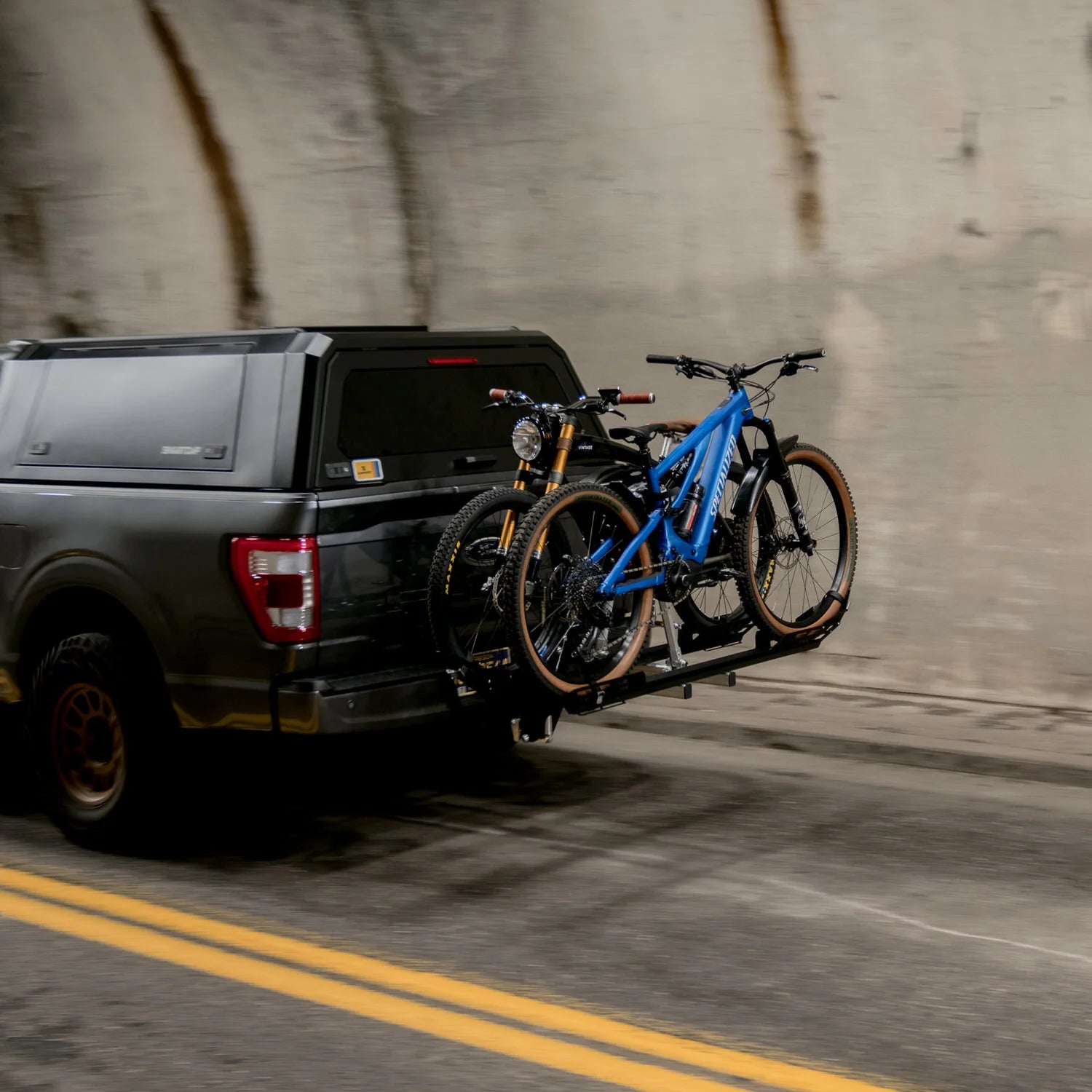

E-Bike Rack for Effortless and Secure Transit
Includes
Features
Specifications
| Load Capacity | 240 pounds |
| Max Bike Weight | 120 pounds |
| Max Number of Bikes | 2 |
| Hitch Receiver Size | 2 inches |
| Lifter Drop | 20 inches |
| Lifter Rise | Roughly 7 inches above the bottom of your receiver |
| Total Rack Weight | 59 pounds |
| Materials | Anodized Billet Aluminum, Powder Coated Steel, Stainless Steel |

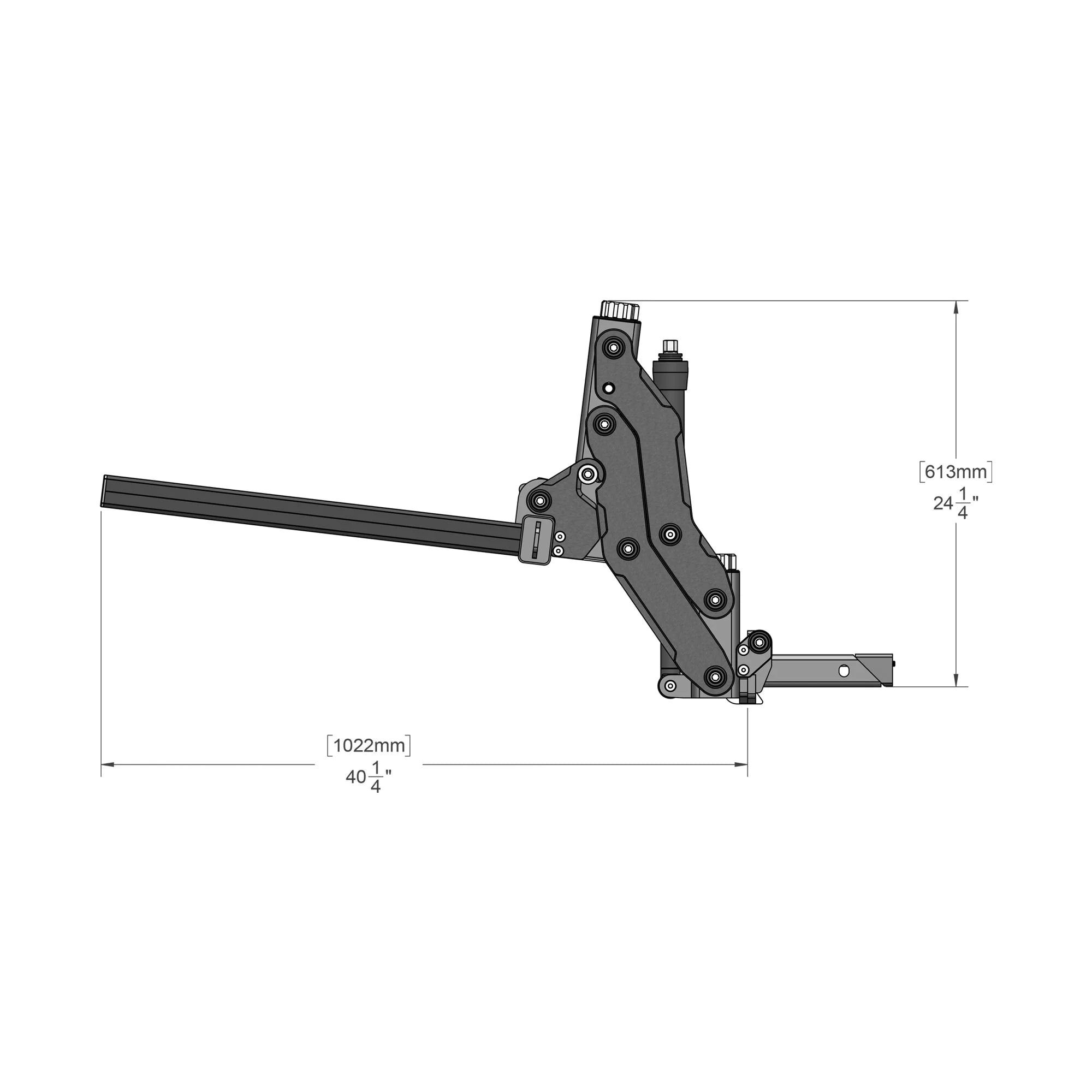

| Deployed and in Transit Position Dimensions | 17 inches deep x 16 inches wide 41 inches bottom of receiver to top of carriage arms |

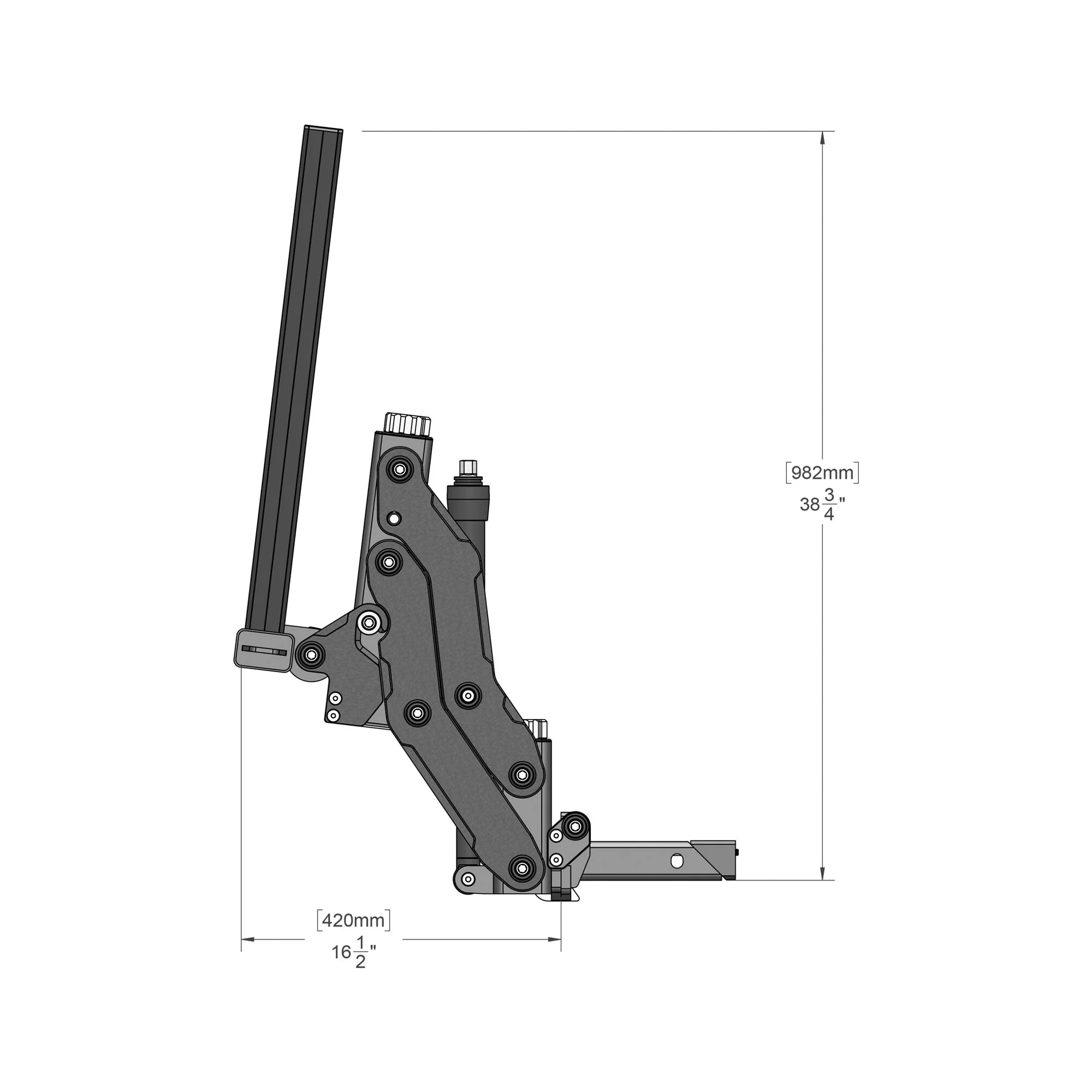

| Folded Dimensions | 17 inches deep x 16 inches wide 41 inches bottom of receiver to top of carriage arms |
| Approved for RV | Yes, Class A, B and C |
| Max Wheel Base | 58 inches |
| Max Tire Width | 5 inches |
| Max Wheel Size | 29 inches & 700cc |
| Load Capacity | 240 pounds |
| Max Bike Weight | 120 pounds |
| Max Number of Bikes | 2 |
| Hitch Receiver Size | 2 inches |
| Lifter Drop | 20 inches |
| Lifter Rise | Roughly 7 inches above the bottom of your receiver |
| Total Rack Weight | 59 pounds |
| Materials | Anodized Billet Aluminum, Powder Coated Steel, Stainless Steel |
| Deployed and in Transit Position Dimensions | 17 inches deep x 16 inches wide 41 inches bottom of receiver to top of carriage arms |
| Folded Dimensions | 17 inches deep x 16 inches wide 41 inches bottom of receiver to top of carriage arms |
| Approved for RV | Yes, Class A, B and C |
| Max Wheel Base | 58 inches |
| Max Tire Width | 5 inches |
| Max Wheel Size | 29 inches & 700cc |
Raises and lowers 240 LBS, so you don't have to

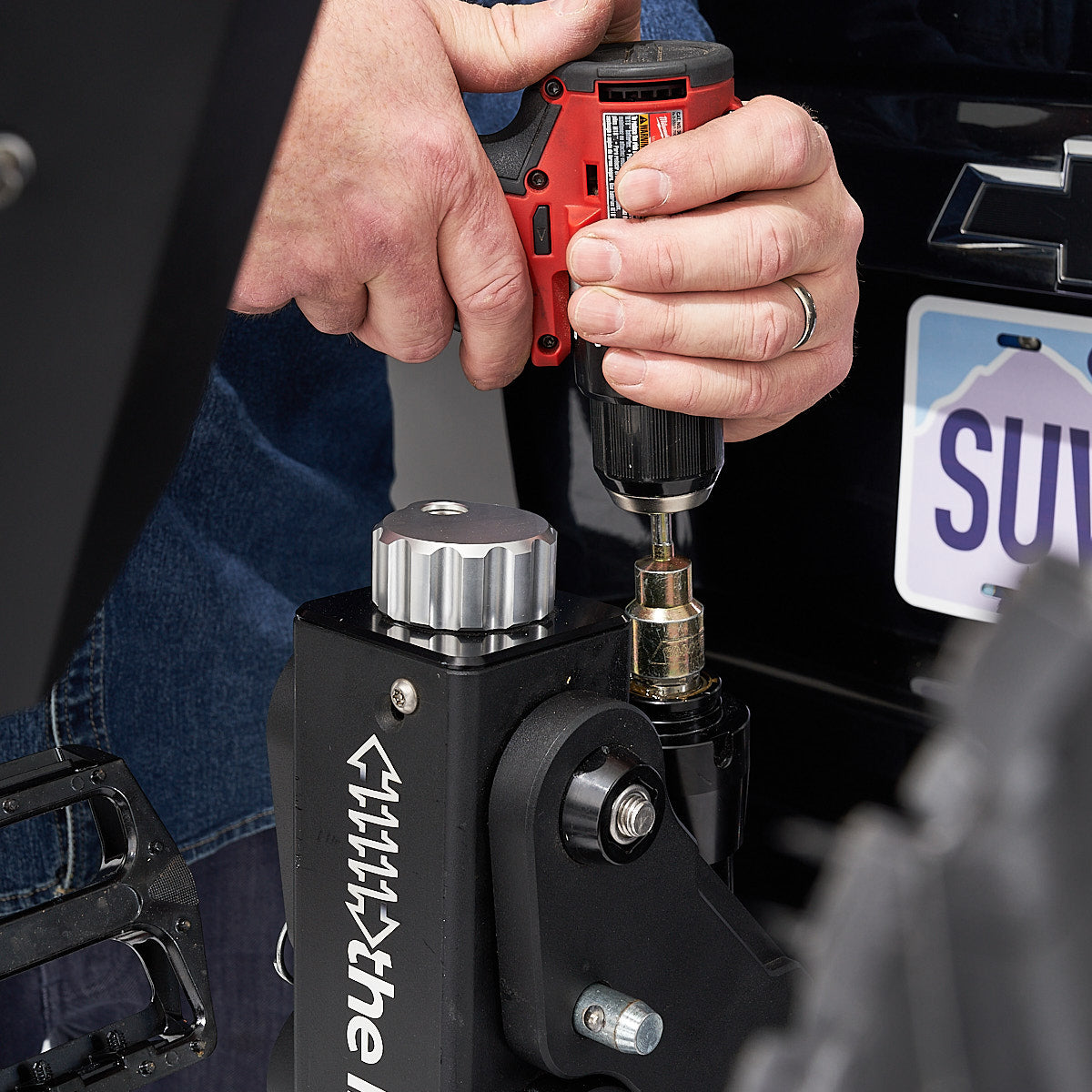

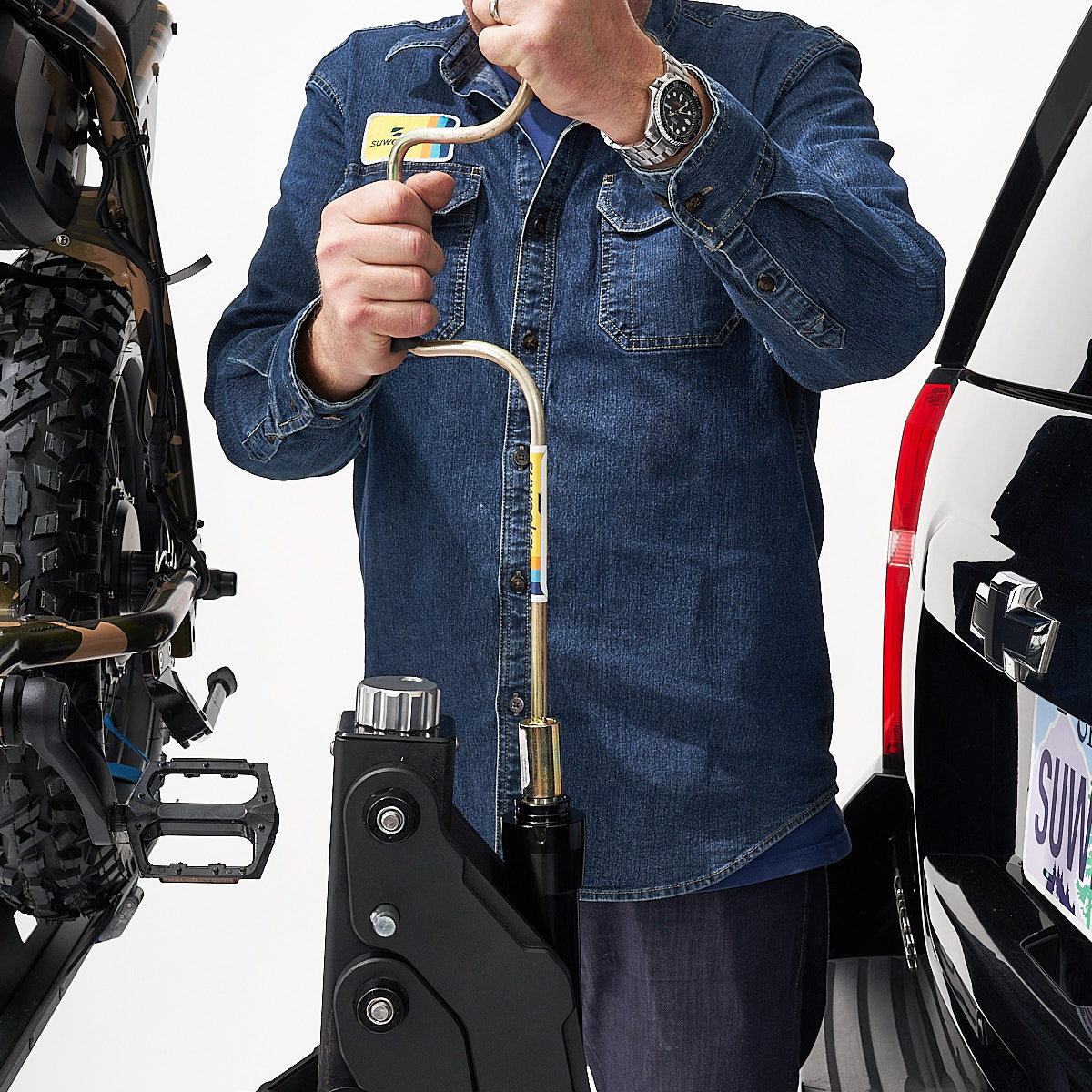

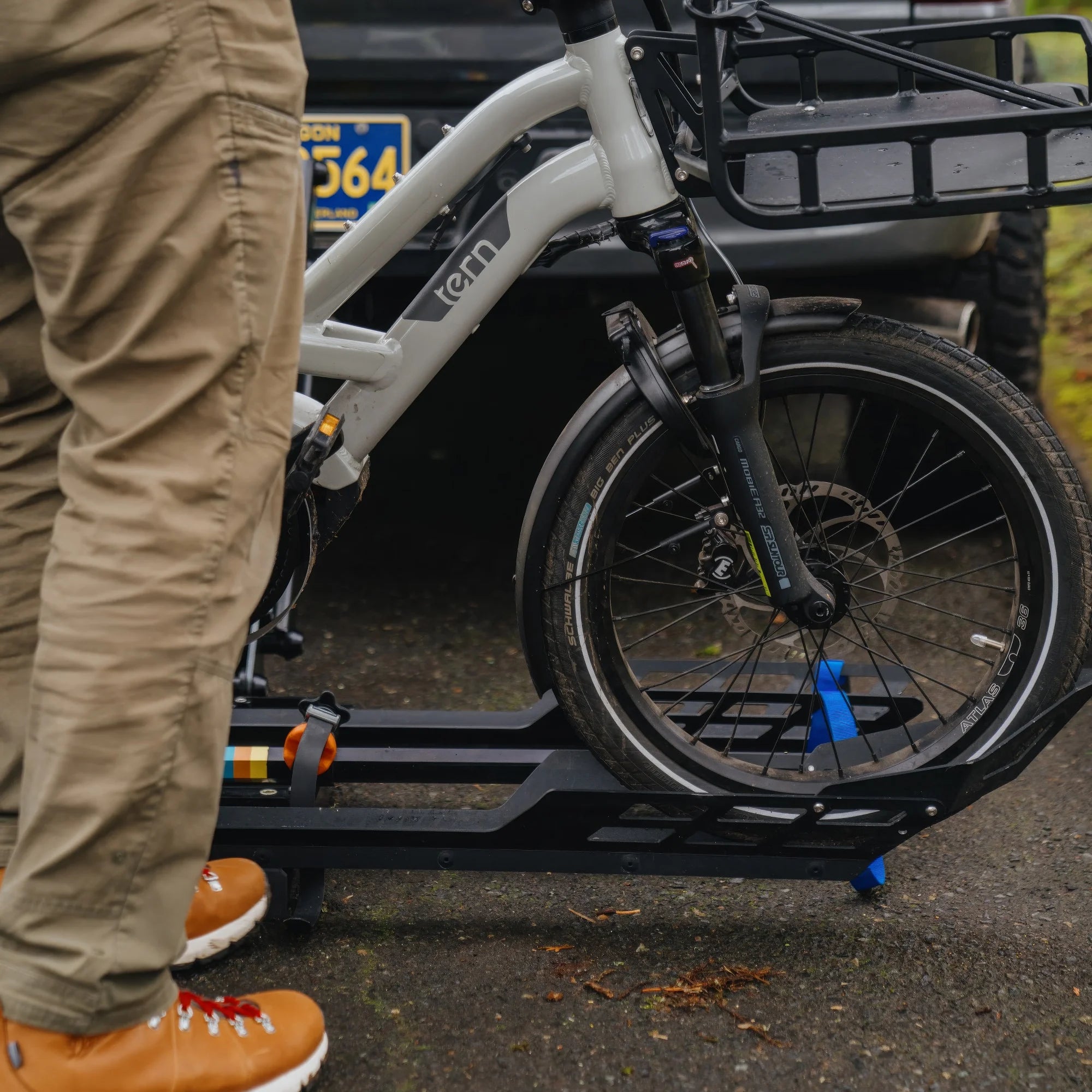

Use your power drill or the hand crank provided to use the mechanical lifting. Our bike tray sits flat on the ground for most vehicles, enabling effortless rolling on and off.
Use your own bike trays, or opt for a custom build
T-slot extrusions offer flexibility to use your own bike trays or opt for custom-tailored carrying solutions.
Installing, (and removing) a rack has never been this easy

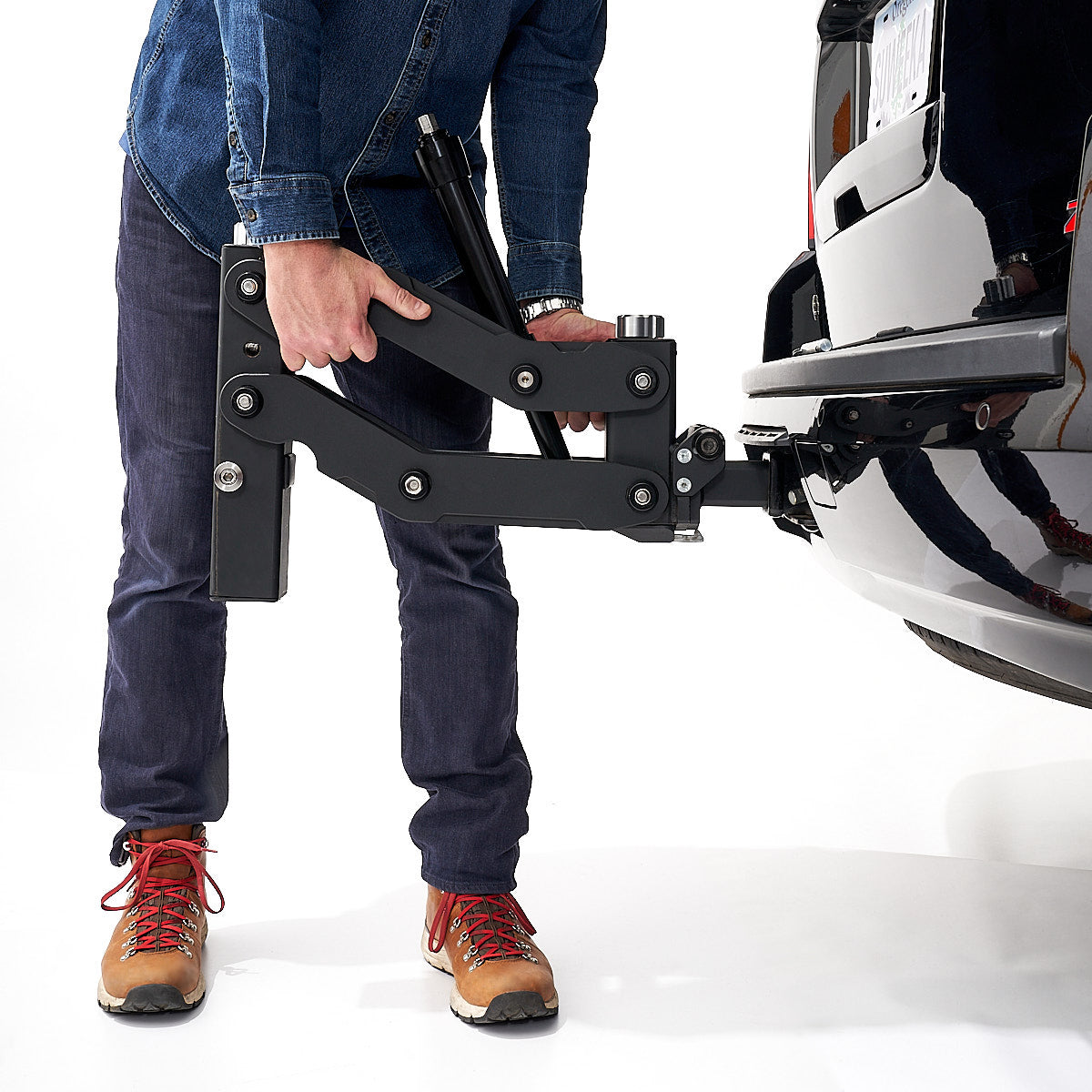

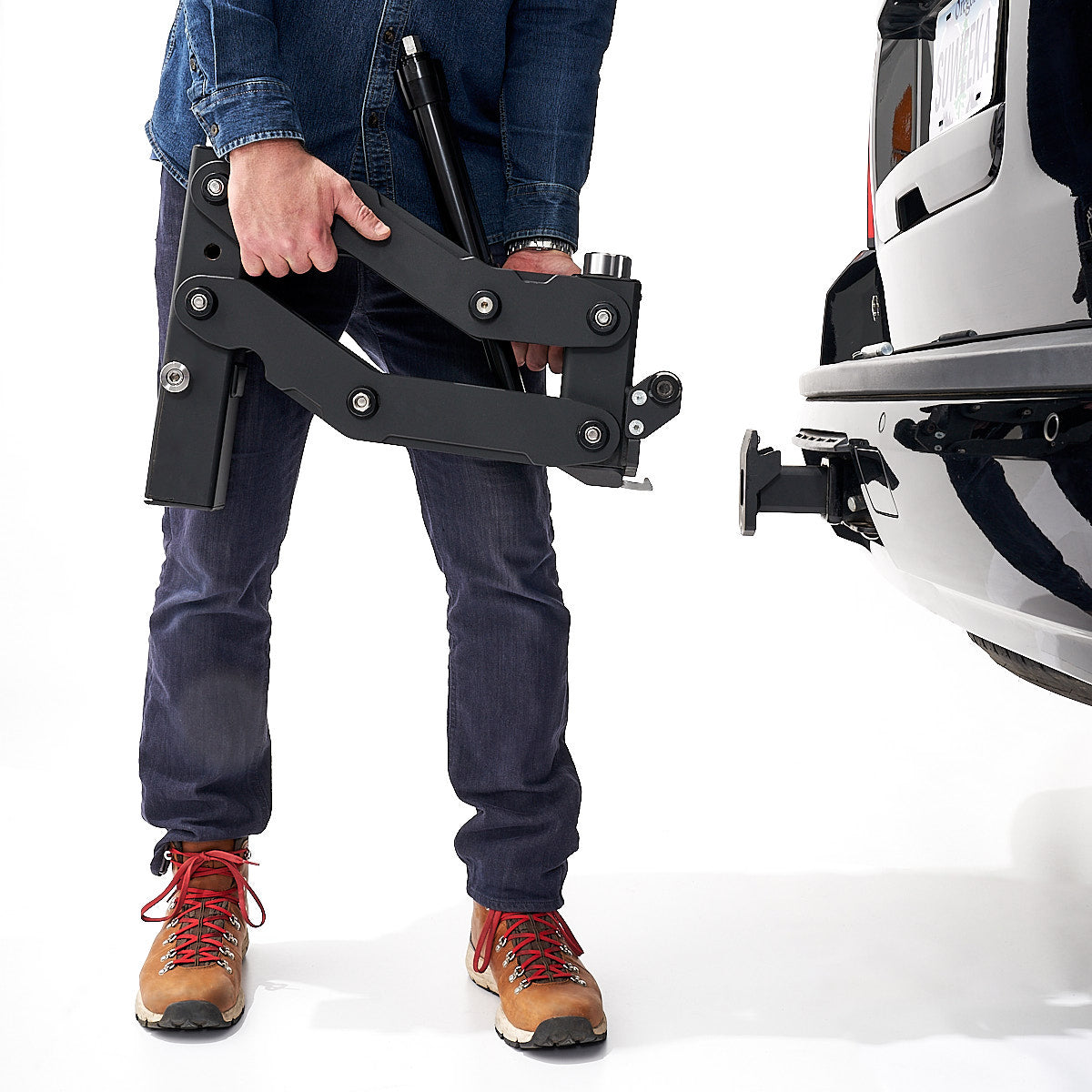

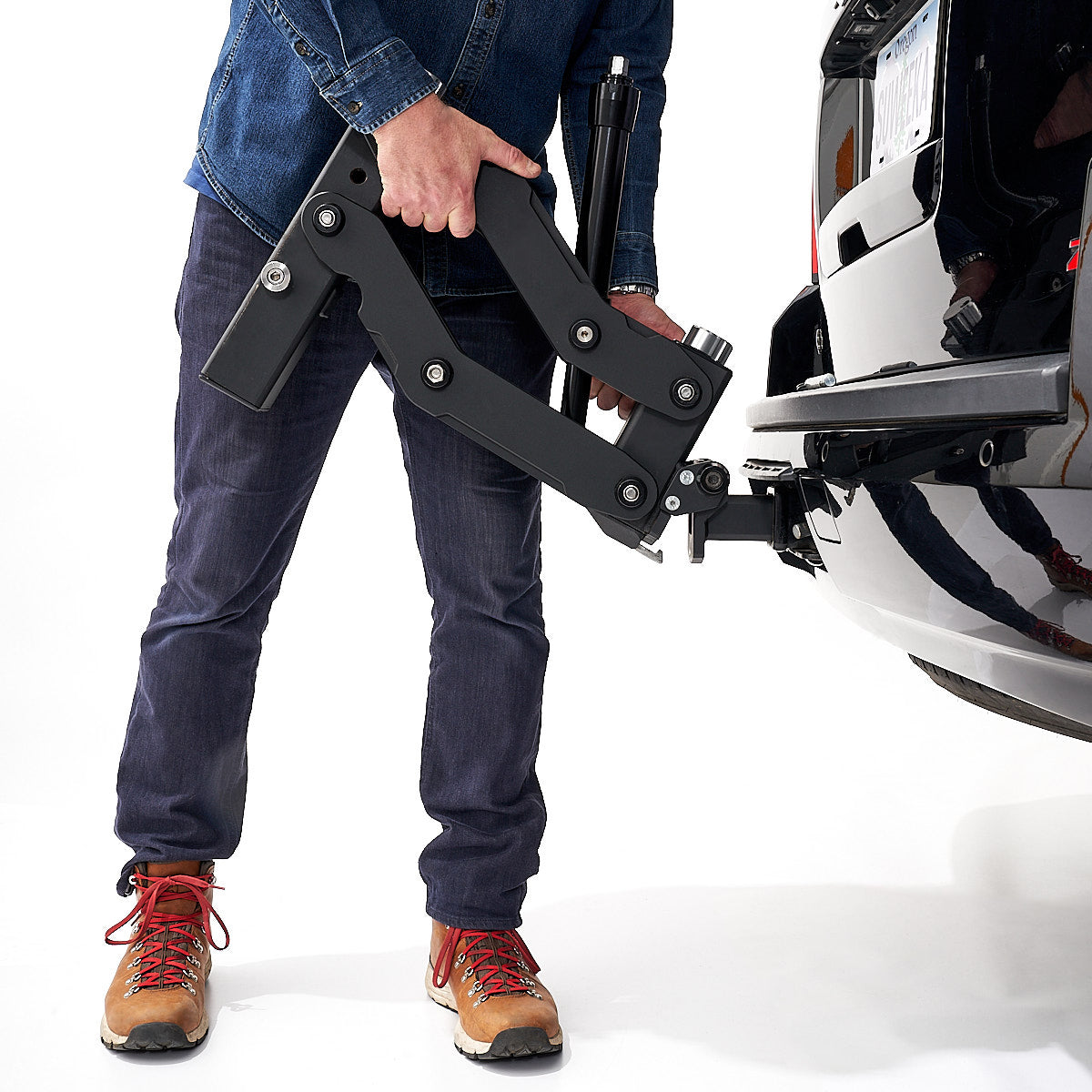

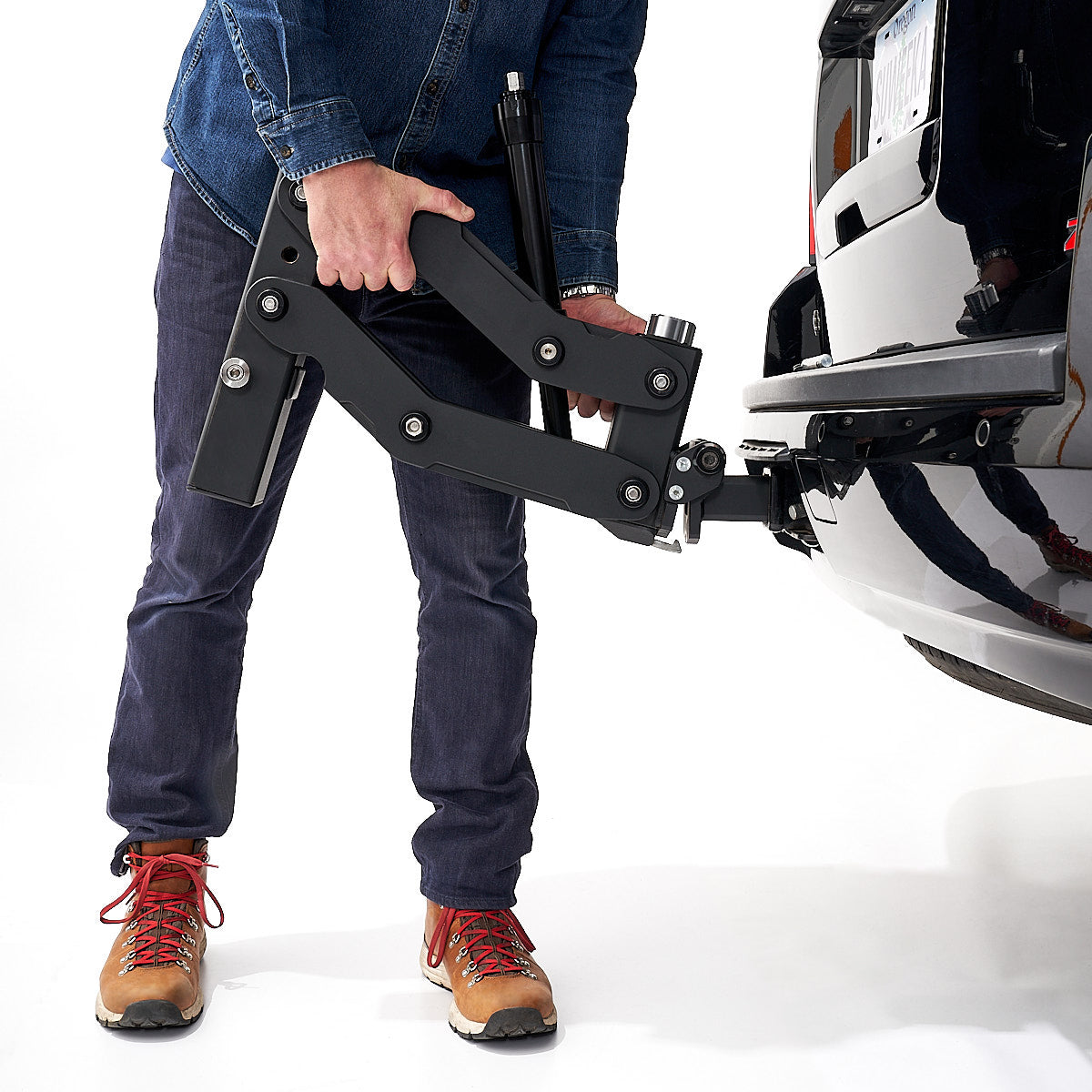

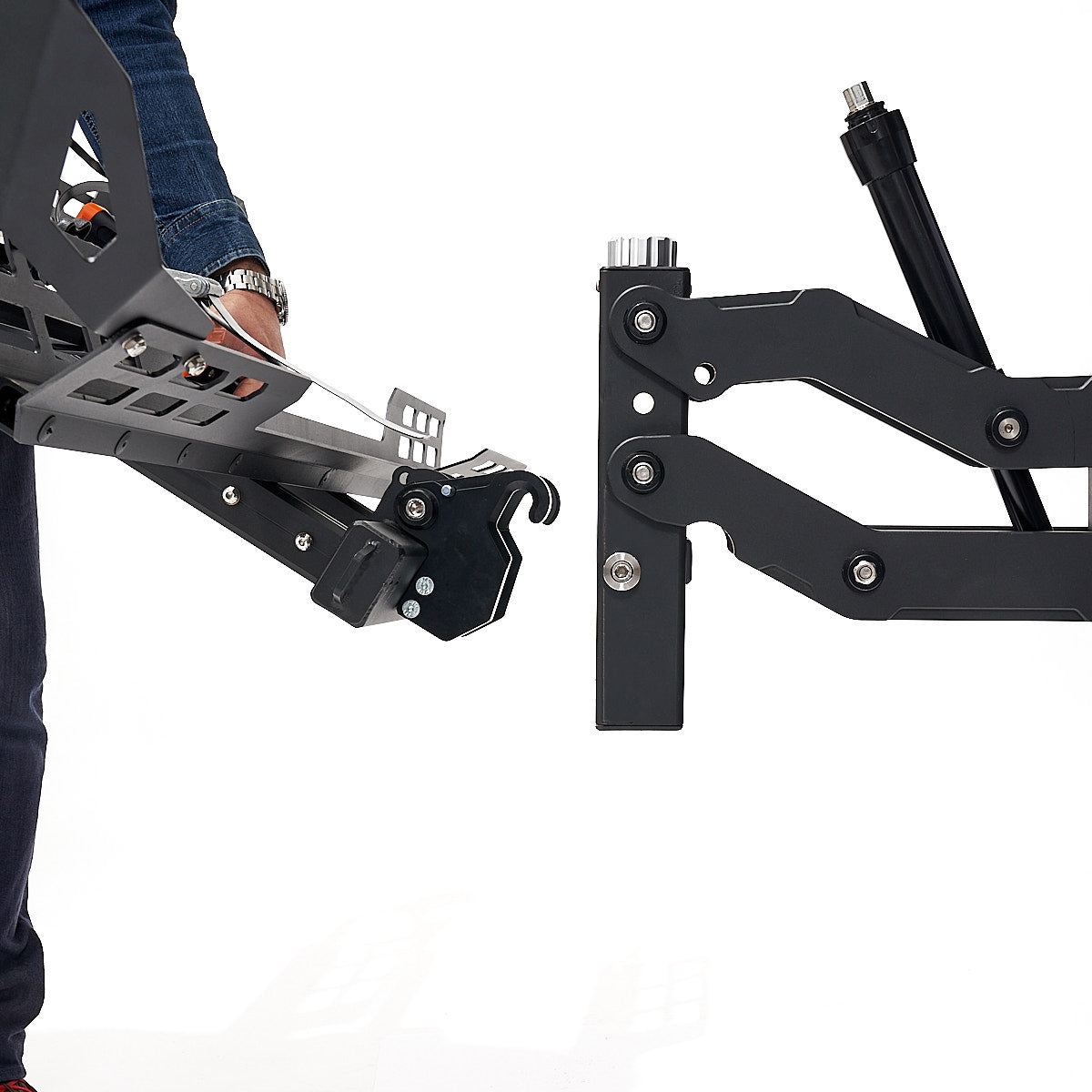

Attach and detach your Bike Lifter with our Patent Pending Quick Connect Hitch. Perfect for starting your adventure quickly, and effortless removal when you're done.
Engineered to be with you for the long haul
An adaptable rack system built to be the last rack you'll need. Quality materials designed, and assembled in the USA.
FAQ
Our support team is here to help.
844-SUWEEKA
info@suweeka.com
Does The Lifter work on a 1 ¼ inch hitch?
Does The Lifter ship ready to install?
Will The Lifter work with a trike or three wheeled e-Bike?
Is The Lifter approved for attaching to RVs
Is The Lifter approved for off road use?
